TCD-1
Compact Self-powered Time Code Display with Advanced Functions

Overview

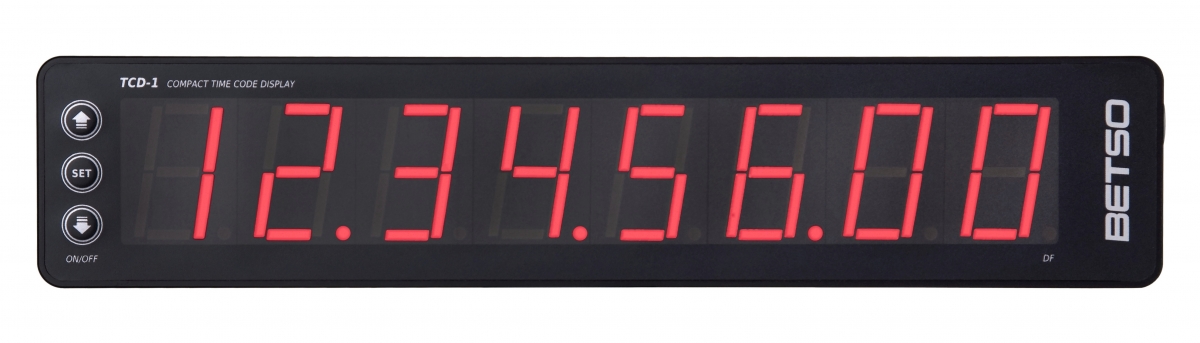

The TCD-1 is a very compact time code display with a large, 1" high time code screen, capable of displaying any format of incoming time code. Special effort during the development phase

was applied to lightweight, robust and precise mechanical construction, which will secure your confidence as the right time code read out solution.

Intuitive menu based function settings

1" high brightness LED displays

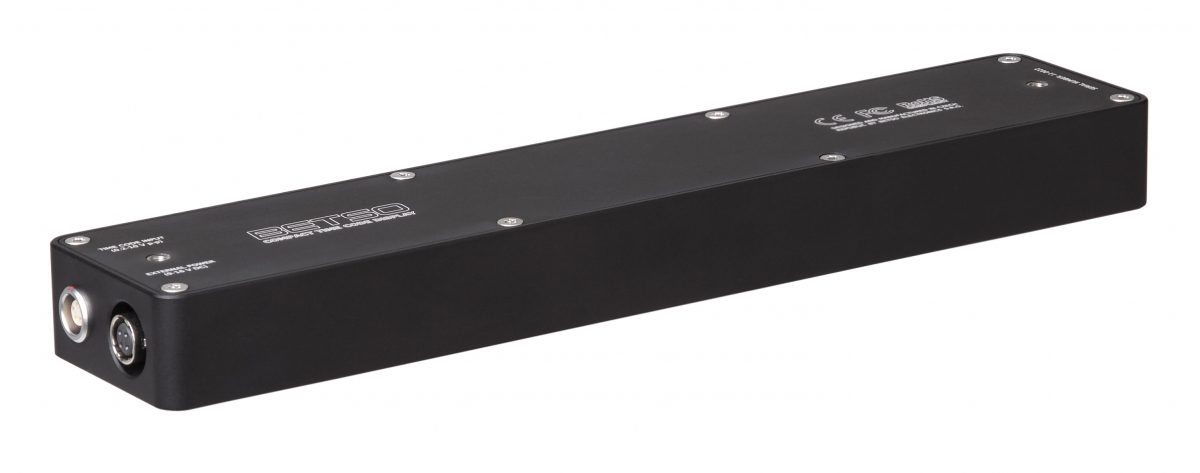

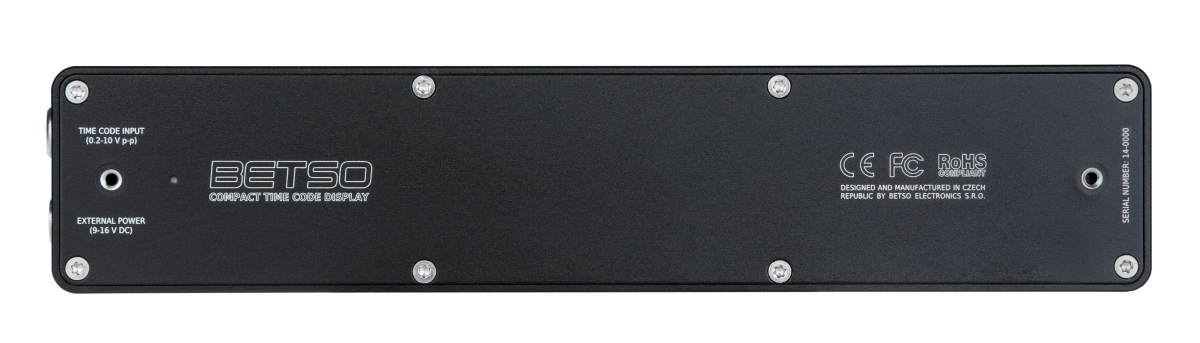

Original LEMO and HIROSE connectors

High quality CNC milled aluminium case

Main features

All formats supported

Display Time Codes of All Frame Rates

The BETSO TCD-1 automatically detects input time code format and starts to display it immediately after connection. It has zero frame offset, which ensures exact time code read outs anytime during the day.

Additionally, it has an easy-to-access feature of time code format readout simply by holding UP button for one second. Drop frame format can be recognized during normal operation by the state of the last decimal point - when the shining drop frame format is detected on input.

Antiglare Surface

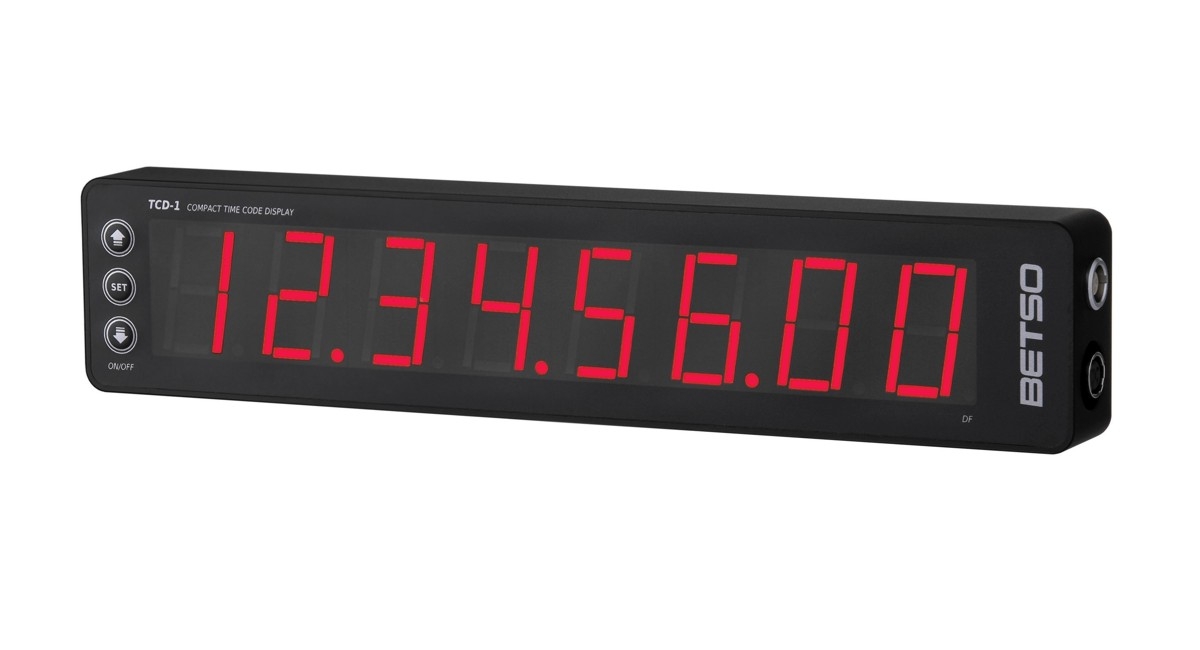

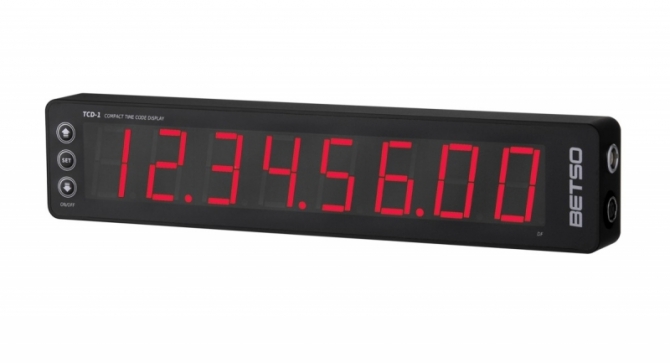

1" Super-bright LED Display with Anti-glare Surface

Ambient light independent time code readouts are guaranteed thanks to a large, 1-inch high, super-bright LED display with a special anti-glare surface that avoids sun reflections. Its brightness can be easily adjusted to six modes to meet actual light conditions.

Extremely Easy to Use

No matter if TCD-1 is turned on or off, the special inbuilt feature gives TCD-1 the ability to start displaying input time code immediately upon insertion of a cable with active time code.

This means no settings have to be programmed, time code format is recognized automatically, and same the device can also be powered up automatically. Furthermore, when input time code stops, it will lead to TCD-1 power off to save the accumulator's energy.

When it comes to changing some special features’ functionality, the TCD-1 can be adjusted through the very intuitive menu shown on the display.

Precise manufacturing

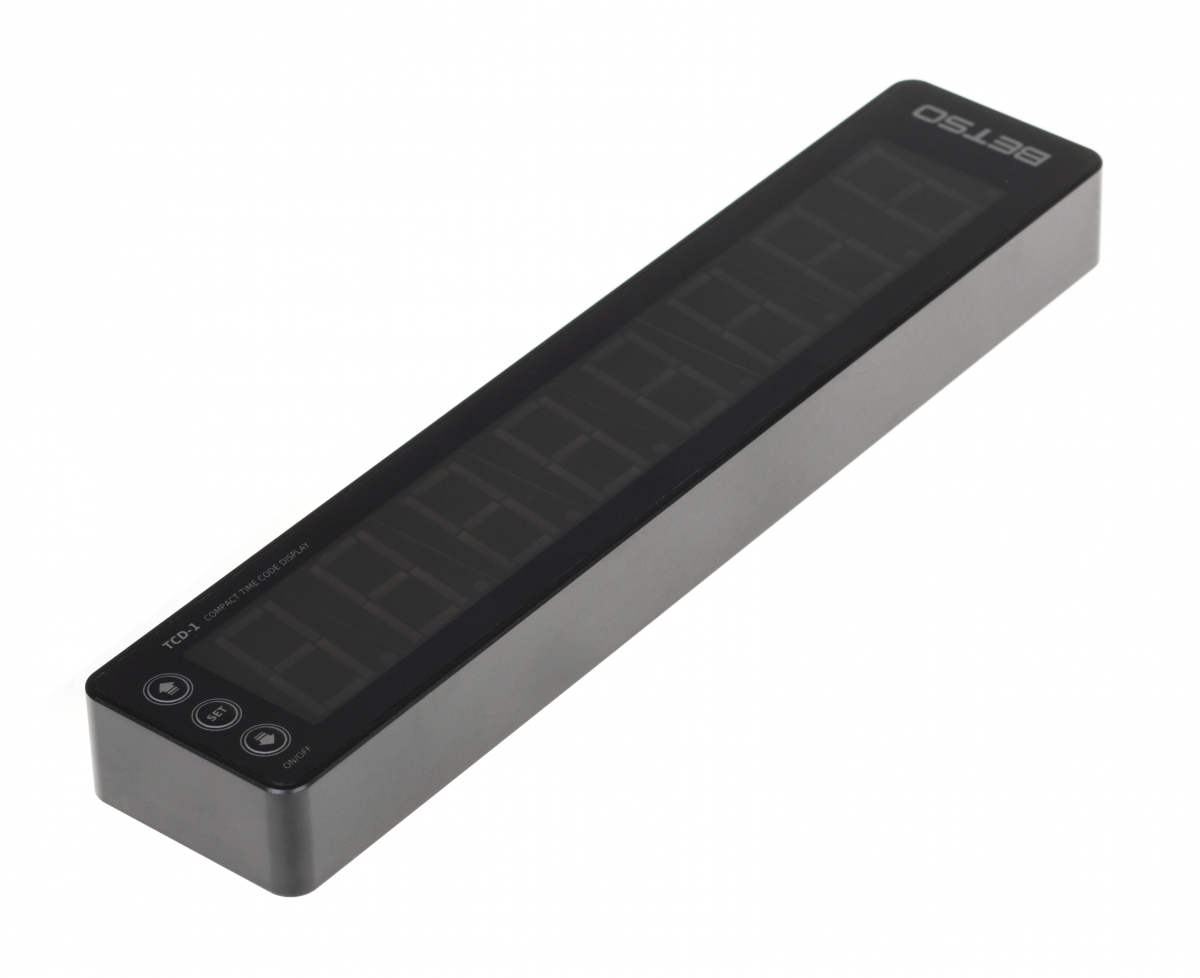

Precise Mechanical Construction with very Compact Dimensions

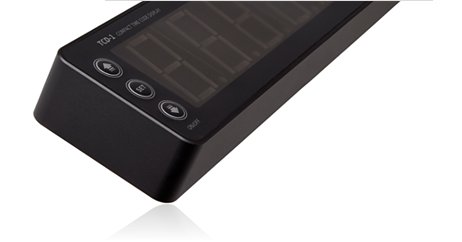

The BETSO TCD-1 is made from lightweight aluminum alloy by precise CNC milling and laser cutting. With its small dimensions and light weight, it is ideal for portable use.

High durability can be further extended by using the TCD-1 Nylon Pouch, which is available for purchase as an optional accessory.

Powering

Li-Ion batteries

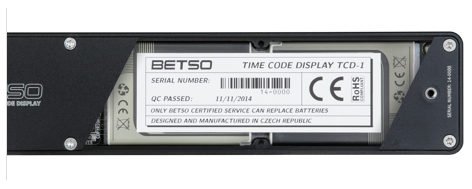

Very long operating time is provided by a replaceable internal high capacity Li-Ion accumulator which can provide up to 60 hours of operation. External power sources can be used in the case of a flat accumulator and the same can be used to charge them again thanks to inbuilt charging circuitry.

Accumulator life can be further extended by activating one of the power saving functions which displays only certain frames from time code flow.

2800 mAh
high quality
Li-Ion cells

60 HOURS
of battery
run-time

SMART
power saving
functions

IN-BUILT
batt. charging
circuit

Video

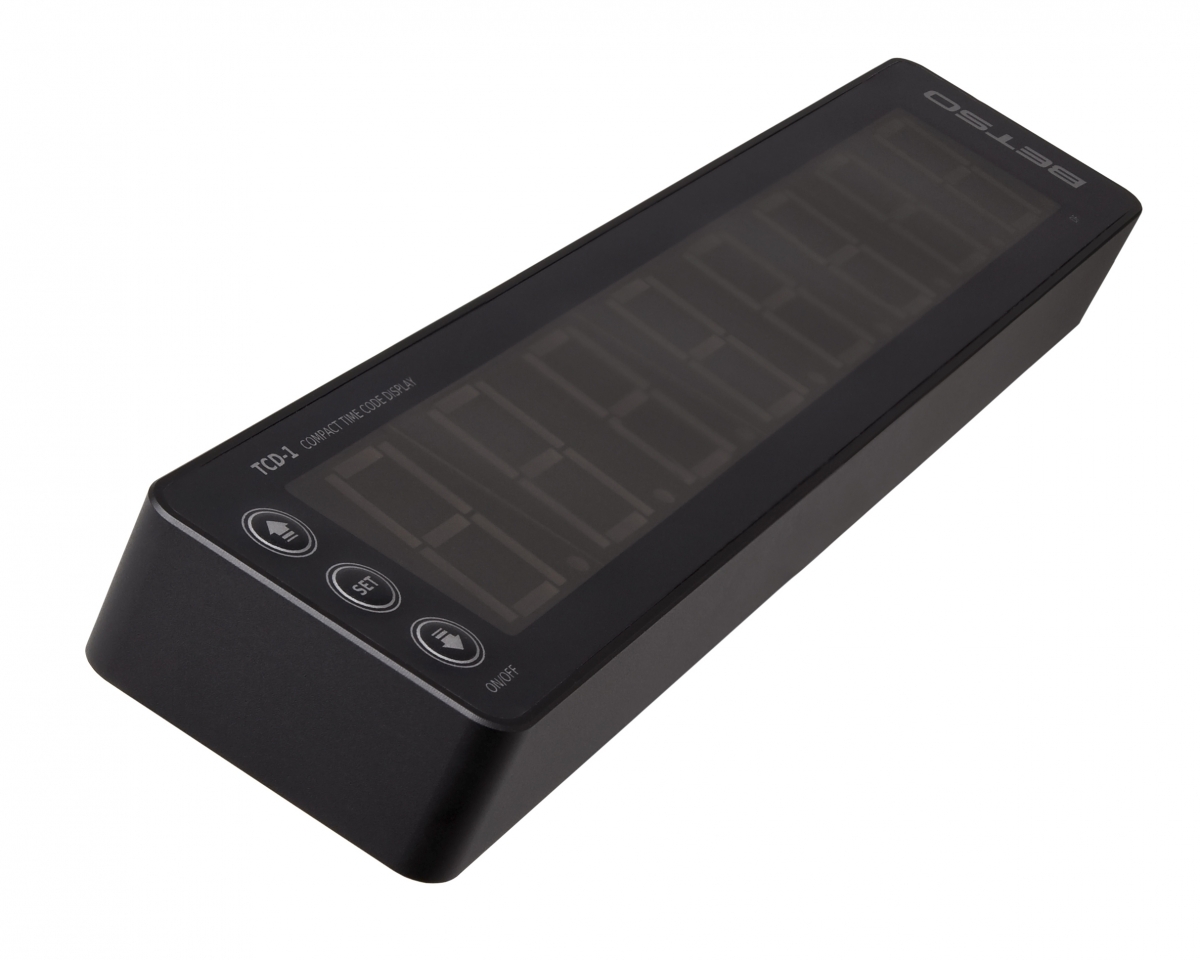

Photos

Technical specifications

Display 1“ high red LED with adjustable brightness
Dimensions (h x w x d) 44.5 x 215 x 21 mm
Weight approx. 283g (including batteries)
Mechanical construction CNC milled, anodized aluminium alloy
Powering Internal Li-Ion accumulator
External powering 9 - 16 V DC
Current consumption 1 - 550 mA *
Battery life Up to 60 hours **
SMPTE TC formats 23,976 fps - 30 fps including DF and NDF (also 0.5 and 2 multiples: 11.98 fps - 60 fps supported)
Input TC sensitivity 0.2 - 10 V (p-p)
Input TC offset 0 frames

* depends on the operating mode

** with the lowest display brightness and without power saving function

Advanced features

Display settings TCD-1 can be set to display timecode, userbits or each 10 frames alternating TC and UB
Power saving functions Saves accumulator's energy by displaying only certain frames from timecode flow
TC hold Power saving function defining time of active timecode displaying after push of a button
Full brightness When activated each first frame of each new second will be displayed with maximum display brightness
Auto off Automatically turns on and off TCD-1 according to active or inactive time code input
Battery charging User selectable behaviour upon external power source insertion (charging automatically or upon confirmation)
Voltage readout Simple external power source (if applied) or accumulator voltage level readout
